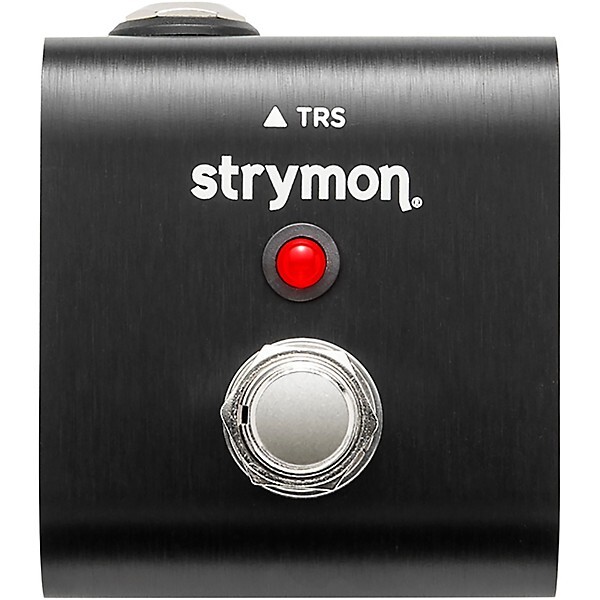

Strymon Mini Switch Preset and Tap Tempo Footswitch

The MiniSwitch expands the functionality of compatible Strymon pedals with convenient remote access to Favorite presets, tap tempo, boost, and other pedal-specific functions. Its compact footprint lets you place the switch wherever it is easiest to reach on your pedalboard while keeping the pedal it controls wherever it fits best.

MiniSwitch offers two operating modes that are selected with an internal jumper. Favorite/Boost mode provides latching operation and is the factory-default setting, while Tap mode provides momentary operation. Connect MiniSwitch to a compatible pedal using the included 1/4" TRS cable, configure the pedal’s EXP jack for the desired function, and MiniSwitch is ready to control it.

In Favorite mode, MiniSwitch can toggle between a saved Favorite setting and the current position of the pedal’s controls. Tap mode allows remote tempo entry on compatible delay, modulation, and reverb pedals. MiniSwitch can also access several pedal-specific functions, including up to +6dB of boost with Riverside, Freeze and Infinite functions with Cloudburst, and Slow/Fast rotary speed switching with Lex.

MiniSwitch requires no separate power supply and is housed in a rugged black anodized aluminum chassis. At only 2" wide, 2.25" deep, and 1.8" high, it adds useful external control without taking up unnecessary pedalboard space.

Features:

• Favorite/Boost latching mode and Tap Tempo momentary mode
• Operating mode selected with an internal jumper
• Remote access to saved Favorite settings on compatible Strymon pedals
• Remote tap tempo control
• Riverside boost control up to +6dB
• Cloudburst Freeze and Infinite control
• Lex rotary Slow/Fast control
• Included 1/4" TRS cable
• No additional power supply required
• Rugged black anodized aluminum chassis
• Compact and lightweight design
• Designed and built in the USA

Compatibility:

• Tap Mode: BigSky, Deco V2, DIG, DIG V2, El Capistan V2, Flint, Flint V2, Lex V2, Mobius, TimeLine, Volante, Zelzah
• Favorite Mode: blueSky V2, Brigadier, Cloudburst, Compadre, Deco, Deco V2, DIG, DIG V2, El Capistan, El Capistan V2, Flint, Flint V2, Iridium, Lex, Lex V2, Riverside, Sunset, Zelzah
• Boost Mode: Riverside
• Freeze/Infinite Mode: Cloudburst

Specifications:

• Type: External Preset / Tap Tempo Footswitch
• Switching Modes: Favorite/Boost (Latching) / Tap Tempo (Momentary)
• Connection: 1/4" TRS
• Included Cable: 1/4" TRS cable
• External Power Required: No
• Dimensions: 2" W × 2.25" D × 1.8" H
• Construction: Black anodized aluminum
• Country of Manufacture: USA
